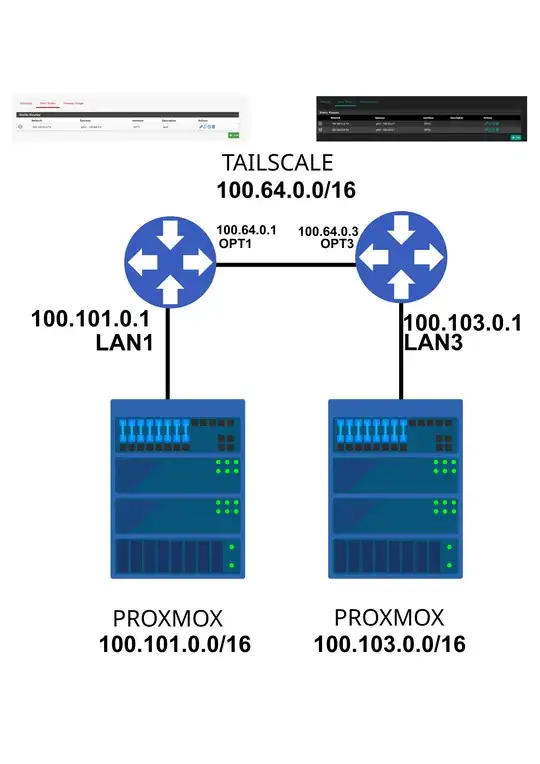

Attempting to get static routes to cross from one router to another. There are two PFSense routers in a stub network called tailscale. Each of the two routers has a physical Proxmox server. I have provided a network diagram with my routes. All the firewall interfaces are set to allow all on all.
Origin IP 100.101.1.2
traceroute to 100.103.1.2 (100.103.1.2), 30 hops max, 60 byte packets
1 100.101.0.1 (100.101.0.1) 0.762 ms 0.655 ms 0.595 ms
2 * * *
3 * * *
4 * ^C
traceroute to 8.8.8.8 (8.8.8.8), 30 hops max, 60 byte packets
1 100.101.0.1 (100.101.0.1) 0.562 ms 0.526 ms 0.503 ms
2 192.168.0.1 (192.168.0.1) 1.352 ms 1.328 ms 1.309 ms
3 <private> (<private>) 2.072 ms 2.177 ms 2.153 ms
4 <private> (<private>) 2.788 ms 2.747 ms 2.720 ms
5 <private> (<private>) 4.176 ms 4.153 ms 4.126 ms
6 8.8.8.8 (8.8.8.8) 17.999 ms 21.366 ms 15.084 ms
The Diagnostics Routing is showing the routing rules are being hit on both routers
