South African Class E38

South African Class E38

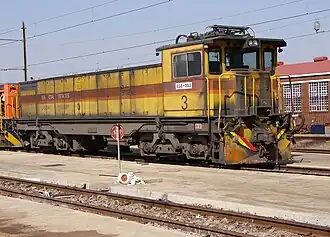

38-003 at Sentrarand in September 2009
Type and origin
Power typeElectric
DesignerConsortium led by Siemens
BuilderUnion Carriage & Wagon
ModelConsortium Class E38
Build date1992
Total produced3
Specifications
Configuration:
​
 • AARB-B
 • CommonwealthBo-Bo
Gauge3 ft 6 in (1,067 mm) Cape gauge
Wheel diameter1,054 mm (41+1⁄2 in)
Wheelbase11,700 mm (38 ft 4+5⁄8 in) ​
 • Bogie2,600 mm (8 ft 6+3⁄8 in)
Pivot centres9,100 mm (29 ft 10+1⁄4 in)
Length:
​
 • Over couplers16,314 mm (53 ft 6+1⁄4 in)
Width2,780 mm (9 ft 1+1⁄2 in)
Height:
​
 • Pantograph4,130 mm (13 ft 6+5⁄8 in)
Electric system/s3 kV DC catenary
Current pickup(s)Pantograph
Traction motorsFour AC 6 pole ABB/6FRA5252 ​
 • Continuous378 kW (507 hp)
Loco brakeKnorr-Bremse air brake
Spring applied, air release parking
Train brakesKnorr-Bremse W450/150-3 compressor
CouplersAAR knuckle
Performance figures
Maximum speed100 km/h (62 mph)
Power output:
​
 • Continuous1,500 kW (2,000 hp) continuous
Tractive effort:
​
 • Starting260 kN (58,000 lbf) @ 35% adhesion
 • Continuous180 kN (40,000 lbf) @ 30 km/h (19 mph)
Factor of adh.:
​
 • Starting35%
 • Continuous25%
Career
OperatorsAmcoal
Anglo Coal
ClassClass E38
Number in class3
NumbersE38-001 to E38-003
Delivered1993
First run1993

The Amcoal Class E38 of 1993 is a South African industrial electric locomotive.

In 1993 Amcoal, now Anglo Coal, a wholly owned subsidiary of Anglo American, placed three Class E38 electric locomotives in service at its Kromdraai Colliery near Witbank, Mpumalanga.[1]

Manufacturer

The 3 kV DC Class E38 electric locomotive is an electric-only version of the Class 38-000 electro-diesel locomotive which was designed for Spoornet by a consortium under the leadership of Siemens. In 1992, three of these locomotives were built for Amcoal by Union Carriage & Wagon (UCW) in Nigel, Transvaal.[2]

The locomotives were delivered in 1993 and numbered E38-001 to E38-003. UCW did not allocate builder's numbers to the locomotives it built for Anglo Coal, but used the Amcoal unit numbers for their record keeping.[1]

Spoornet’s Class 38-000

Prior to the production of the Class E38 for Amcoal Mines, UCW also built fifty Class 38-000 locomotives for Spoornet. The Class 38-000 is a dual mode electro-diesel locomotive, identical in exterior appearance and dimensions to the Class E38 but designed for 3 kV DC electric as well as diesel-electric operation and equipped with a 780 kW (1,050 hp) Caterpillar DITA 3508 diesel prime mover.[3]

Service

The three Class E38s now serve at the Landau Colliery near Witbank.[1]
